AC Triac Dimmer Ultra Sensitive High Strength Glass Touch 86 Panel Fade Mode for AC 110V 220V 230V Dimmable LED Lamps Dimming

AC Triac Dimmer Ultra sensitive high strength glass touch 86 panel Fade Mode For AC 110V 220V 230V Dimmable LED lamps Dimming

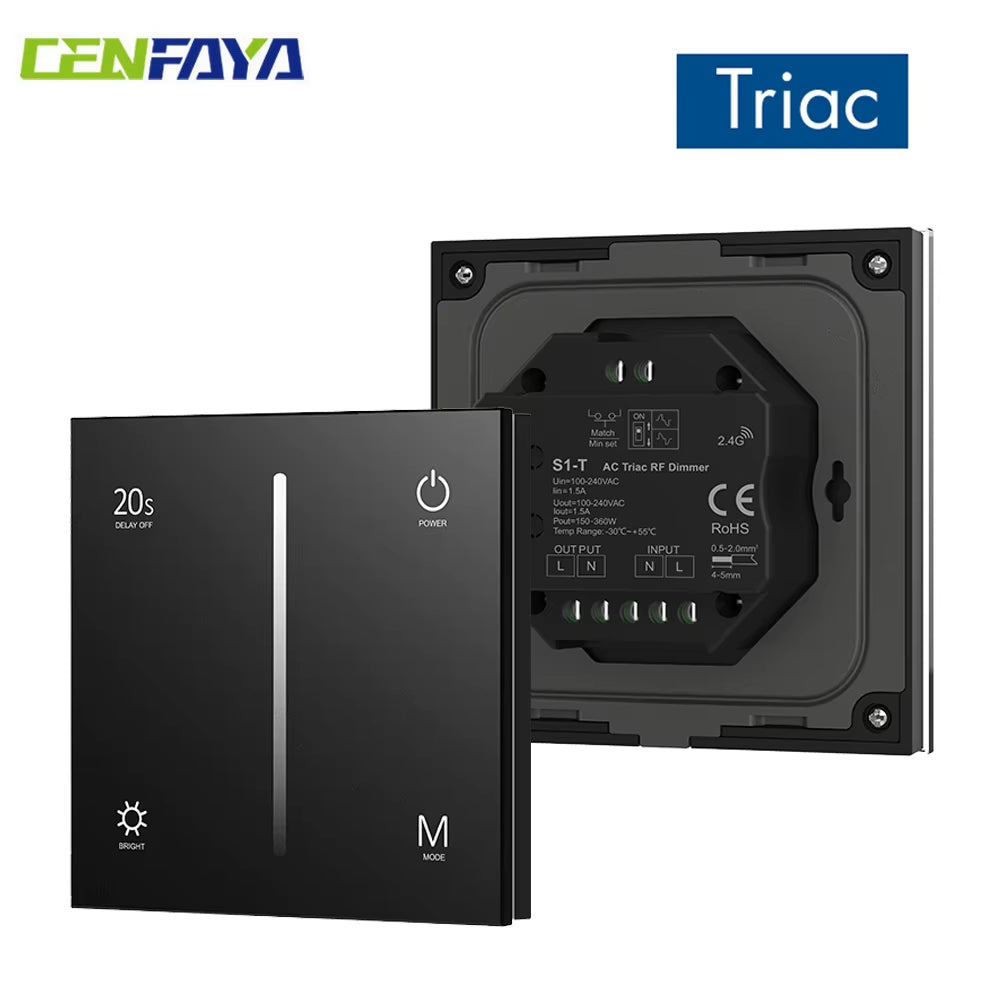

MODEL NO : S1-T

Features

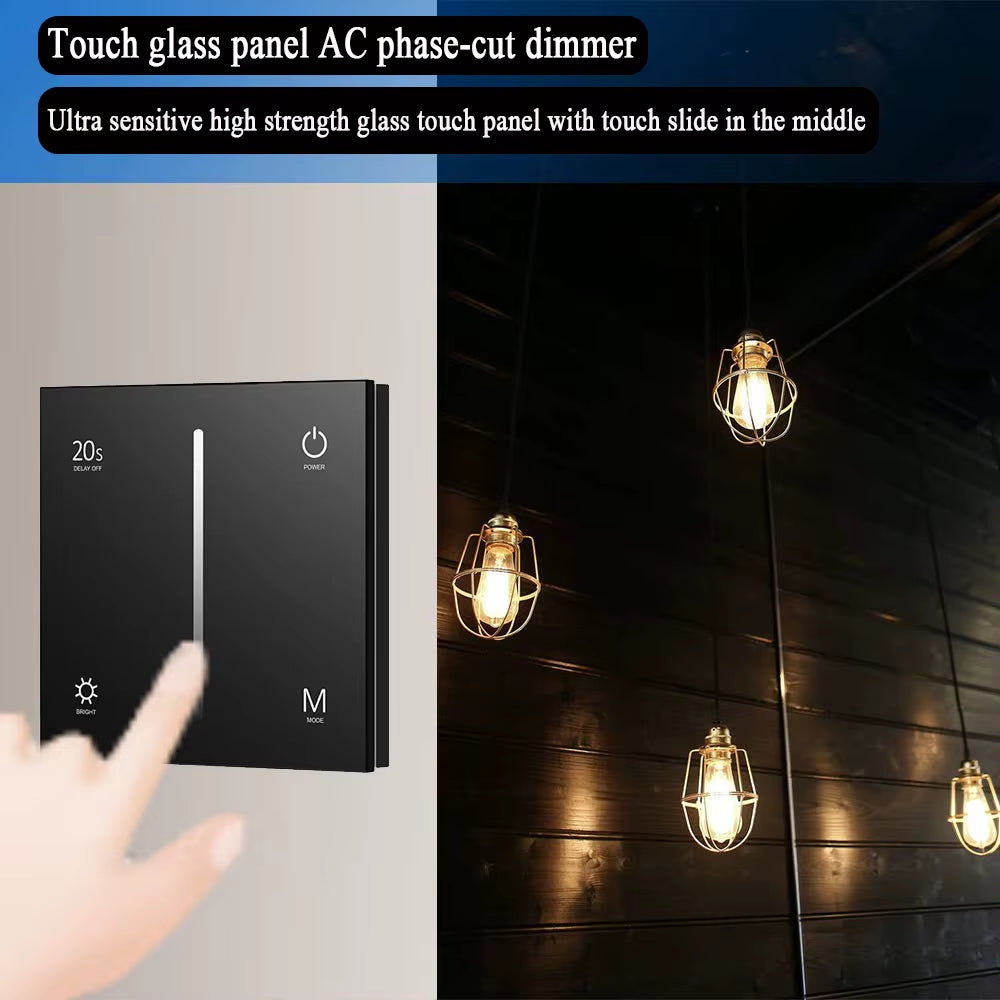

● Touch glass panel AC phase-cut dimmer, 1 channel output.

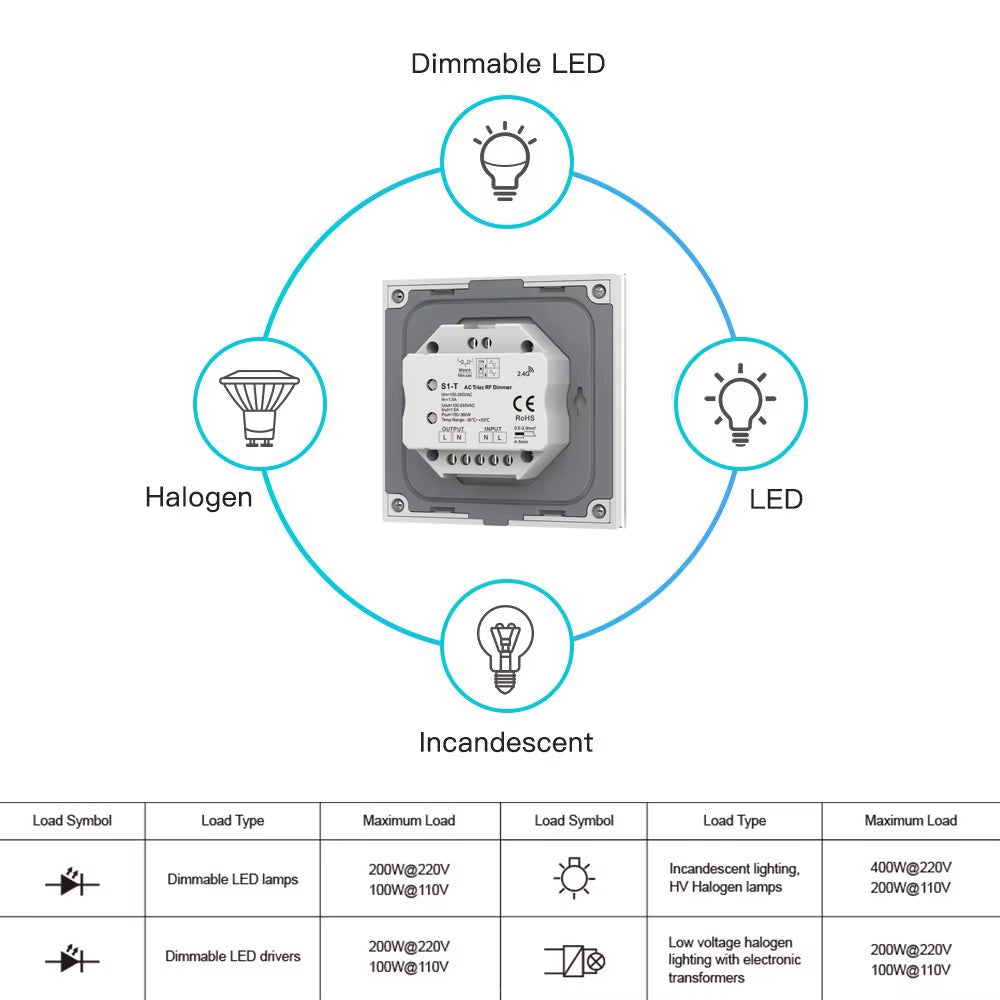

● To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights.

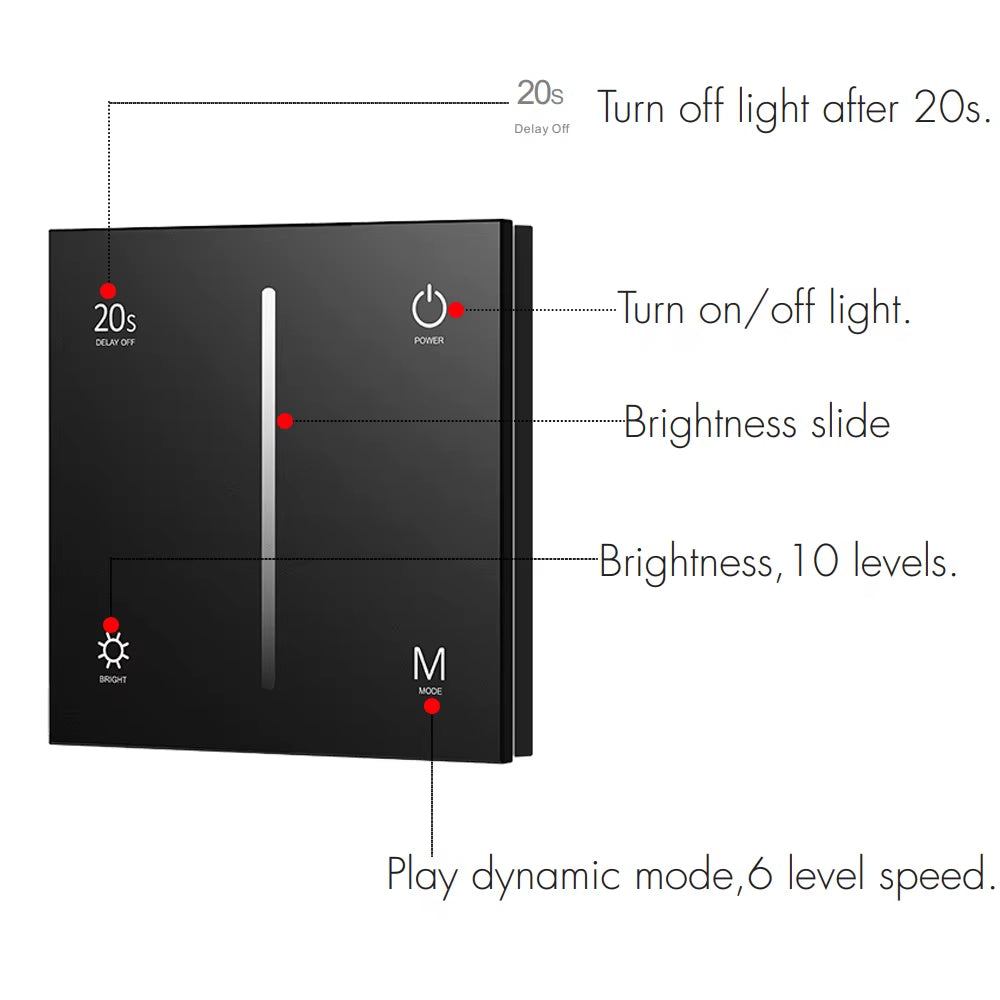

● Ultra sensitive high strength glass touch panel with touch slide in the middle.
● 256 levels 0-100% dimming smoothly without any flash.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Light on/off fade time 3s selectable.
● Compatibility with RF 2.4G single zone or multiple zone dimming remote control.

● Over-heat / Over-load protection, recover automatically.

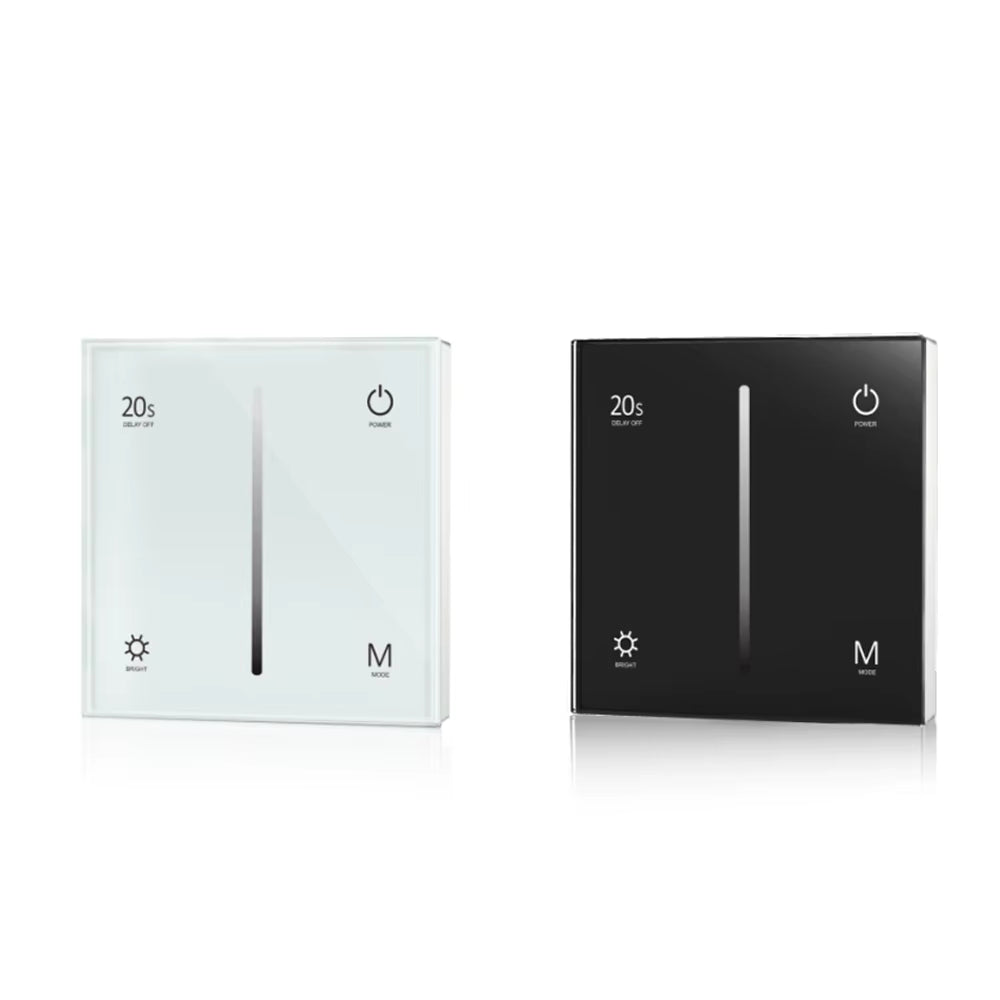

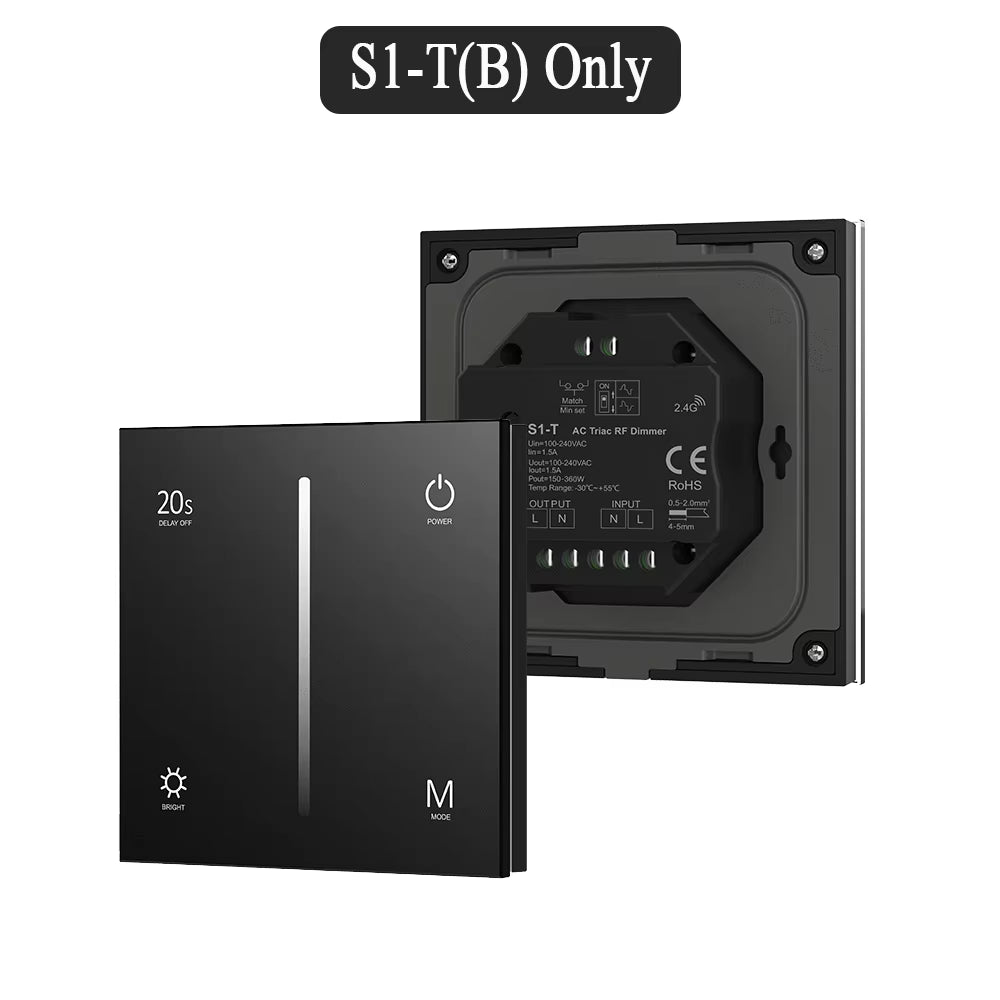

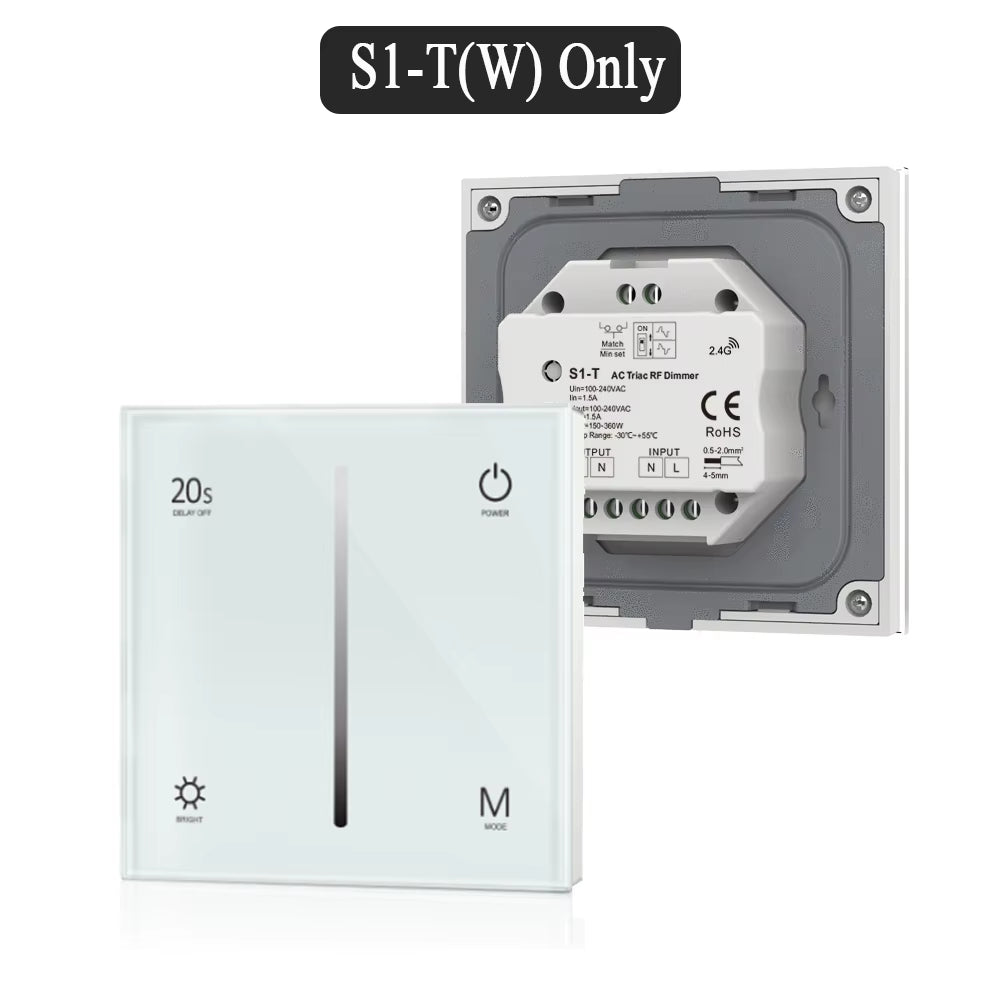

● White & Black glass panel available.

Min Brightness Setting

●Long press Min set key for 2s, the light blink 2 times, ready for min brightness set, then short press Min set key 1-6 times, to get 6 min
●brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately,
●Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.

Light On/Off Fade Time

●Long press Match key 5s, then short press Match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times.
●Long press Match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.

S1-T supports 2.4G RF remote control. If you need a remote control. Please purchase at other links in our store. Or contact the store owner. We will recommend the remote control you need.
